Testing a check valve is not a single step that happens before the valve leaves the manufacturer. It continues when the valve becomes part of a larger system.
Manufacturers can inspect components and test an assembled valve to confirm that it meets their established criteria. But they cannot recreate every environment where that valve will eventually operate. Pressure, temperature, media, installation, surrounding equipment, and other conditions can all affect performance.
That creates two important stages of verification: testing by the manufacturer and application-specific testing by the customer.
Understanding the role of each can help you build a more complete check valve testing procedure and determine whether a valve performs as expected in your application.
What Are Check Valve Testing Standards?
There is no single set of check valve testing standards that applies to every valve and every application.
Testing can vary based on the type of valve, its intended function, the manufacturer's quality processes, the industry, and the requirements of the end application. A test designed for one system may tell you very little about how the same valve will perform under a different set of conditions.
It is also important to distinguish between manufacturer testing and application validation.
Manufacturer testing typically evaluates a valve against defined manufacturing or functional criteria. Application testing goes further by evaluating the valve under conditions that represent your actual system.
Both provide useful information, but they answer different questions.
Check Valve Testing Starts Before Final Assembly
Testing and inspection can begin before a check valve is assembled. The components that make up the valve also need to meet established requirements.

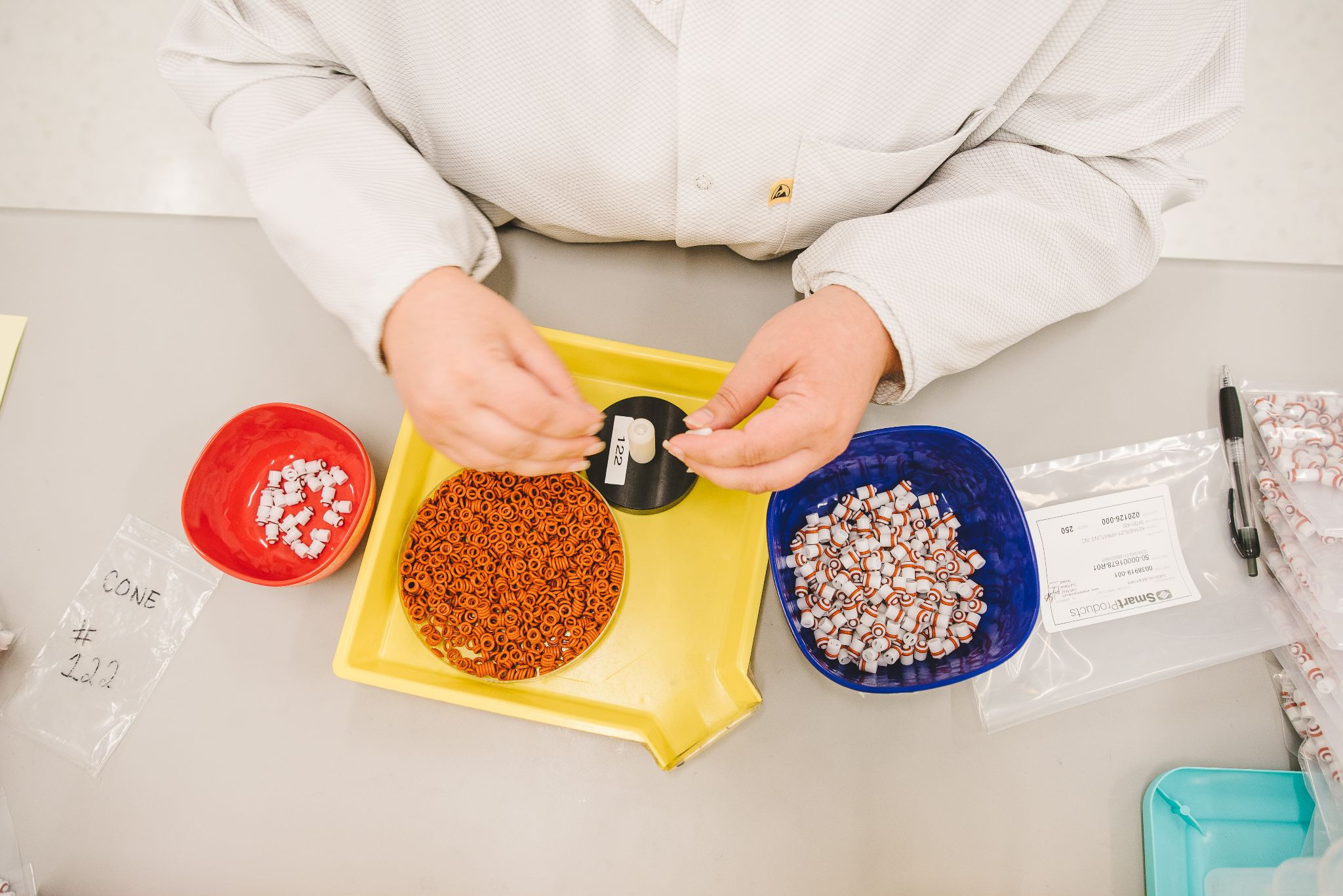

Incoming Component Inspection
At Smart Products, incoming inspections are performed on key components used in valve assembly. Depending on the component and applicable requirements, this can include items such as O-rings, springs, and plastic molded materials or components.
This step provides an opportunity to identify component or material inconsistencies before those parts become part of a finished valve.
For a check valve, those individual components matter. The spring, O-ring, poppet, and valve body all work together to control how the valve operates. Variations in one component can affect the assembled product.
First-Article Inspection and Testing
First-article inspection, or FAI, provides another point of verification.
FAI is used to confirm that key characteristics of a component meet established requirements before it moves into regular production. Rather than assuming a new component or production run is consistent with expectations, first-article inspection provides a defined point for checking it.
Together, incoming inspection and first-article testing help establish component quality before final assembly and functional testing take place.
How We Test an Assembled Check Valve
Once a check valve is assembled, we perform a leak test based on its established internal criteria.
The purpose of this testing is to verify the basic operation of the finished valve before it leaves the manufacturing process. When a valve passes, it confirms that the assembly met the criteria established for that test.
The distinction here is important: a leak test verifies the valve under the conditions of that test.
It does not demonstrate how the valve will perform under every condition it may encounter after installation.
For example, a manufacturer may be able to verify that a check valve opens and closes as expected under its test conditions. That test cannot automatically predict how the same valve will respond to a customer's specific combination of fluid or gas, temperature, pressure, equipment, installation, and operating cycle.
That is where customer testing becomes essential.
Why Manufacturer Testing Is Only Part of the Process
No manufacturer can reproduce every environment where its valves are used.
Even two systems using the same check valve may expose it to very different conditions. Those differences can influence how the valve behaves once it becomes part of the complete system.
Variables can include:
- Operating and opening pressure
- Flow conditions
- Temperature
- Fluid, gas, or other media
- Chemical exposure
- Contamination
- Valve orientation and installation
- Upstream and downstream components
- Surrounding equipment
Some applications also involve conditions that simply cannot be recreated during a manufacturer's standard functional test.
Consider a check valve intended for a specialized medical device. A basic leak test can verify that the manufactured valve meets the manufacturer's test criteria. It cannot replicate an invasive medical procedure or establish that the complete medical device will perform safely and effectively.
The customer must validate the valve as part of that specific application.
This principle applies beyond high-risk applications. Even in more common industrial equipment, the manufacturer typically does not control everything that happens upstream or downstream of the valve.
How Should You Test a Check Valve in Your Application?
Your check valve testing procedure should reflect the conditions the valve will experience in your system.
Exactly what that testing looks like depends on the application. You should establish your own test and acceptance criteria based on your system requirements, applicable standards, operating conditions, and risk.
Depending on the application, testing may need to account for:
- Expected pressure and flow ranges
- Opening pressure requirements
- Normal and extreme operating temperatures
- The actual fluid, gas, or other media passing through the valve
- Valve position and installation method
- Upstream and downstream equipment
- Potential contaminants or environmental exposure
- Repeated operation under expected service conditions
Testing the valve as part of the complete system is particularly important. A check valve does not operate in isolation once installed. Pumps, tubing, fittings, seals, pressure changes, and other components can influence its performance.
Application testing helps answer the question that manufacturer testing cannot: Does this valve perform as required in this specific system?
Different Applications Require Different Testing Approaches
The right way to test a check valve depends heavily on what that valve is expected to do.
A fuel pump check valve test, for example, may need to evaluate the valve under conditions specific to the fuel system. Those conditions are different from the requirements for a check valve used in medical equipment, water handling, or another industrial application.
The same distinction applies when discussing pressure relief valve testing. Pressure relief valves perform a different function and may have their own performance criteria, testing procedures, and applicable standards.
Likewise, someone researching how to test a backflow prevention device should follow the requirements that apply to that specific device and system. Testing procedures for a backflow prevention assembly should not automatically be applied to a small inline check valve.
A testing method only provides meaningful information when it reflects the type of valve, its intended function, and the conditions where it will operate.
Why You Should Not Modify a Finished Check Valve
Testing sometimes reveals another problem: the selected valve does not quite fit the application as intended.
It can be tempting to make a physical modification to solve the problem. Cutting, shaving, drilling, or otherwise altering a finished check valve, however, can change how the assembly functions and affect manufacturers warranties.
A check valve is made up of components designed to work together within specific dimensions. Depending on the design, that can include the valve body or cartridge, poppet, O-ring, and spring.
Changing one part of that assembly can affect the relationship between the others.
There is also an important testing issue to consider. Once you physically modify a finished valve, you are no longer evaluating the same assembly that passed the manufacturer's original functional test. The results of that test cannot necessarily be applied to the modified version.
If an existing valve does not meet the dimensional or functional requirements of an application, the appropriate next step is to evaluate whether a different valve configuration is needed rather than physically altering the finished product.
From Manufacturer Testing to Application Validation
A check valve that passes a manufacturer's test has cleared an important checkpoint, but it has not reached the end of the testing process.
Reliable application performance requires looking at the full picture.
The manufacturer can verify components, assembly, and basic valve function against established criteria. The customer can then test that valve under the pressures, temperatures, media, equipment, installation methods, and other conditions it will experience in use.
Keeping those responsibilities distinct makes check valve testing standards more meaningful. Instead of asking whether a valve has simply been "tested," the more useful questions are what was tested, under what conditions, and what does that test actually verify?
Those questions provide a stronger foundation for evaluating check valve performance from manufacturing through final application.
