4 Different Types of Plastic Check Valves for Your Application

No quod sanctus instructior ius, et intellegam interesset duo. Vix cu nibh gubergren dissentias. His velit veniam habemus ne. No doctus neglegentur vituperatoribus est, qui ad ipsum oratio. Ei duo dicant facilisi, qui at harum democritum consetetur.

Choosing a plastic check valve based on size and function alone can create problems throughout your system.

A valve that physically fits may still cause unnecessary pressure loss, restrict flow, fail prematurely, or prove difficult to install. In the worst case, it may not meet your application’s operating requirements at all.

The right valve delivers the required performance without being oversized, overengineered, or improperly specified. Defining the requirements early can also reduce costly redesigns and repeated testing later in the development process.

Although there are many different types of check valves, experienced manufacturers do not begin by pointing to a product in a catalog. They begin with the application. Does the application fall within the valve’s operating capabilities? What pressure will make the valve open? How much flow must pass through it? Are all the wetted materials compatible with the medium?

Three specifications answer much of the initial selection question:

  1. Opening pressure
  2. Flow rate
  3. Material compatibility

Once those requirements are understood, you can compare physical configurations and determine how the valve will fit into the system. The last step is validating the selection under actual operating conditions.

The guiding principle is simple: Test, don’t guess.

How Does a Spring Type Check Valve Work?

A check valve allows a liquid or gas to flow in one direction while preventing it from flowing backward. A spring-type check valve, more commonly called a spring-loaded check valve, uses spring force to control when the valve opens and closes.

As upstream pressure increases, it applies force to the valve’s internal sealing element. The valve begins to open when the difference between inlet and outlet pressure is sufficient to overcome the spring. This point is known as the valve’s opening pressure.

When forward pressure drops, the spring pushes the sealing element back toward its seat, helping stop reverse flow.

Because the spring provides the closing force, a spring-loaded check valve can offer several advantages:

  • Predictable opening behavior
  • Fast, positive closure
  • Suitability for liquid and gas applications
  • More freedom in installation orientation than a gravity-dependent valve

Spring-loaded valves can generally operate vertically, horizontally, or in other orientations because they do not depend solely on gravity to close. However, orientation should still be checked against the manufacturer’s specifications and validated in the finished assembly. This is especially important in ultra-low-pressure systems, where small changes in operating conditions may affect performance.

Three Specifications to Define Before Comparing Check Valve Types

The physical style of a valve matters, but it should not be the first thing you evaluate. Before comparing check valve types and applications, define what your system requires to perform as it should.

1. Opening Pressure

Opening pressure is typically the most important starting specification for a spring-loaded check valve. It determines how much differential pressure must be present before the valve begins to open.

Lower opening pressure is not automatically better.

If the opening pressure is too high, the system may not generate enough force to open the valve reliably. Flow may begin late, remain below the required rate, or fail to start at all.

If the opening pressure is too low, the valve may open when the application needs it to remain closed. That can undermine pressure control or other intended system behavior.

It is also important to distinguish differential pressure from the total pressure on one side of the valve. A valve responds to the pressure difference between its inlet and outlet. For example, substantial inlet pressure does not necessarily create a large opening force if there is also significant pressure on the outlet side.

If the required opening pressure is unknown, the manufacturer should not simply guess. You should test samples with several opening pressures to determine which one performs correctly in the application.

2. Required Flow Rate

A valve beginning to open does not mean it is delivering the application’s required flow. That is why you should identify the minimum, normal, and maximum expected flow rates, not just the desired opening pressure.

Valve size, flow capacity, pressure drop, and available system pressure are closely related. A valve must provide a large enough flow path without using more of the available pressure than the system can tolerate.

This creates an important tradeoff in compact equipment. A smaller valve may fit easily into a medical device, diagnostic instrument, laboratory product, or crowded automotive engine compartment. However, reducing the valve size can also reduce its internal flow capacity or increase the pressure drop across it.

3. Material Compatibility

Material compatibility is more than selecting a suitable plastic body. Every wetted component must be evaluated against the application’s liquid, gas, or chemical medium.

Depending on the application requirements, these components may include:

  • Plastic valve body
  • O-ring or other sealing material
  • Spring
  • Adhesives or assembly materials

To verify compatibility, you should consider more than just the primary valve materials. Look across the entire system and environment to ensure proper pairings.

Important conditions include:

  • Chemical concentration
  • Operating and exposure temperatures
  • System pressure
  • Cleaning or sterilization agents
  • Duration and frequency of exposure
  • Expected shelf and service life

A plastic housing may tolerate a chemical while the O-ring does not. The seal may swell, shrink, harden, soften, or otherwise degrade before any visible damage appears on the valve body.

Spring material can also matter if it is exposed to the medium.

Compatibility charts are helpful screening tools, but they cannot account for every combination of material, concentration, temperature, pressure, and exposure time. Use them to identify promising material combinations, then confirm performance through application-specific testing.

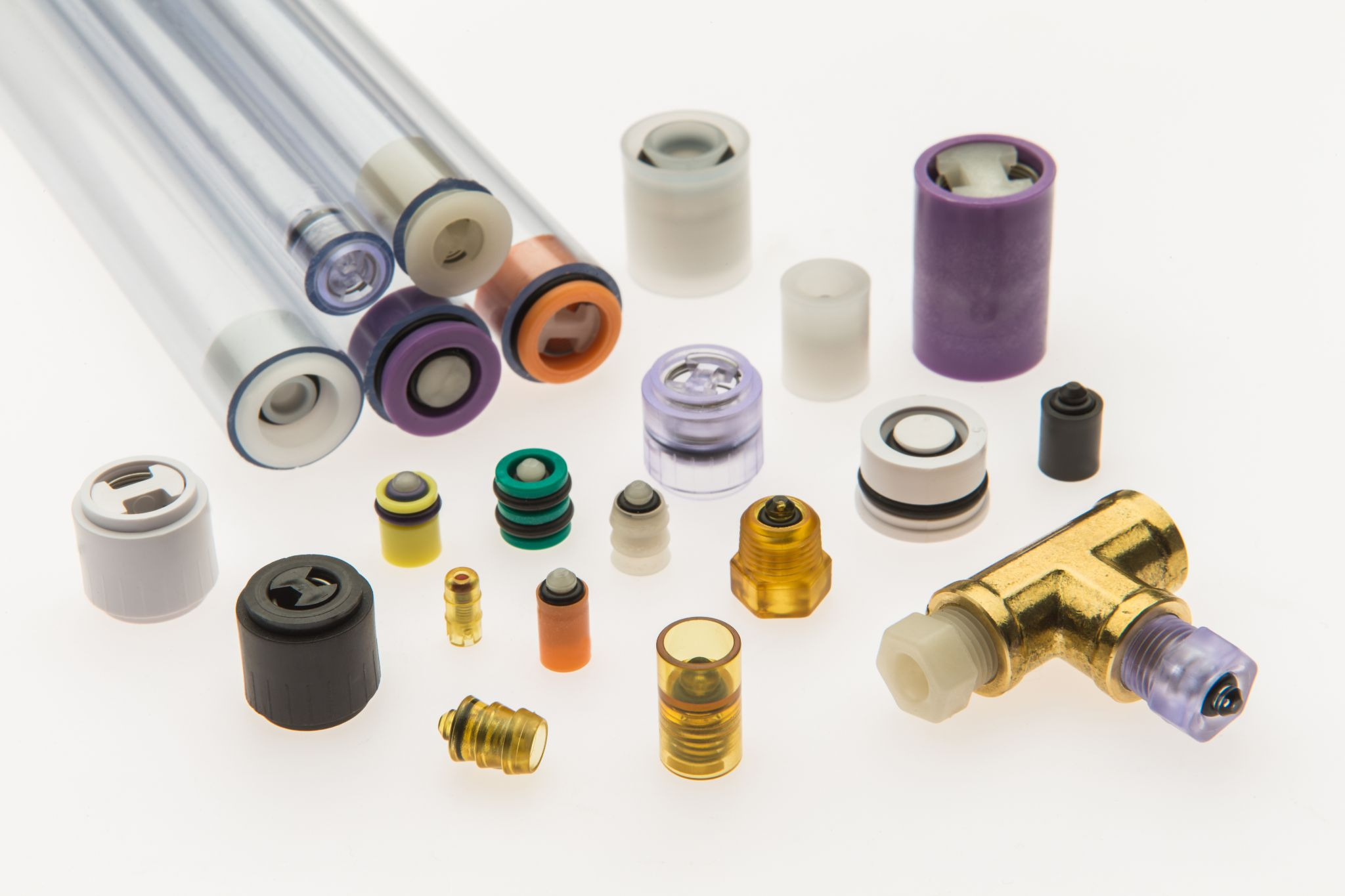

undefined-1

4 Different Types of Plastic Check Valves by Installation Configuration

Once the performance requirements are understood, the next question is how the valve will physically connect to the system.

Configuration

Typical interface

Most useful when

Primary concern

Cartridge or press-fit

Fitting, manifold, or housing

The valve must be integrated into another component

Retention, sealing, and installation tolerances

Barbed

Flexible tubing sizes and styles

A simple inline tubing connection is needed

Tubing size, material, and pull-off resistance

Threaded

NPT or metric port

A secure mechanical connection is required

Thread compatibility, torque, and assembly stress

Modular or miniature

Micro tubing, barb end fittings or Luer-style connection

Space is limited or different interfaces must be joined

Flow capacity and dead-space tradeoffs

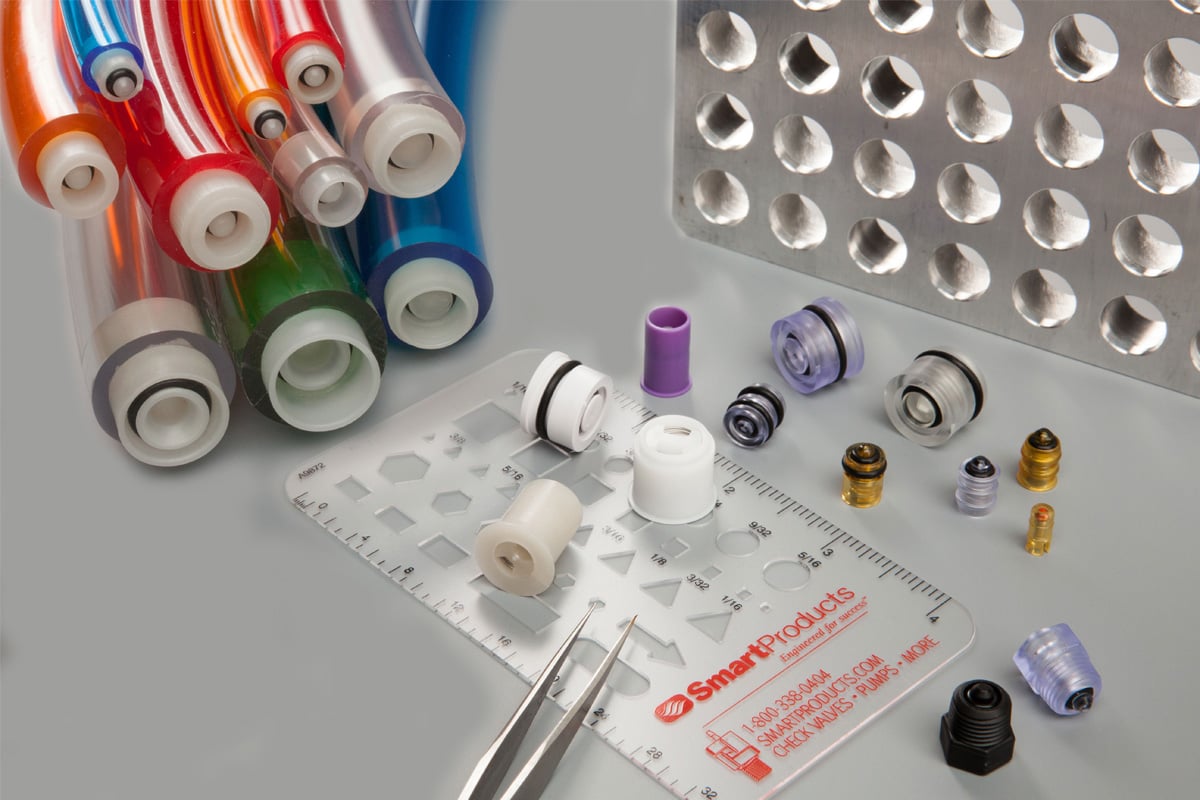

1. Cartridge and Press-Fit Check Valves

four_types_vlaves_cartridge(1)

Cartridge and press-fit check valves are compact components designed to be inserted into a fitting, manifold, tubing assembly, or custom housing. Rather than supplying every external connection, the surrounding component becomes part of the final installation.

These valves can be a good fit for:

  • Integrated OEM assemblies
  • Compact manifolds
  • Custom fluid or pneumatic circuits
  • Products in which minimizing external fittings is beneficial

Their small footprint and integration flexibility are significant advantages. In some systems, a cartridge valve can also reduce the number of adapters or connection points required.

Successful integration depends on more than the valve’s outside diameter, however. The design team must determine how the valve will be retained, how the interface will seal, and what dimensional tolerances the surrounding component must maintain. Excessive installation force can damage the plastic body, O-ring, or sealing surfaces, so be aware of how you’ll install it into your system.

The valve and its receiving component therefore need to be evaluated as an assembly and not as unrelated parts.

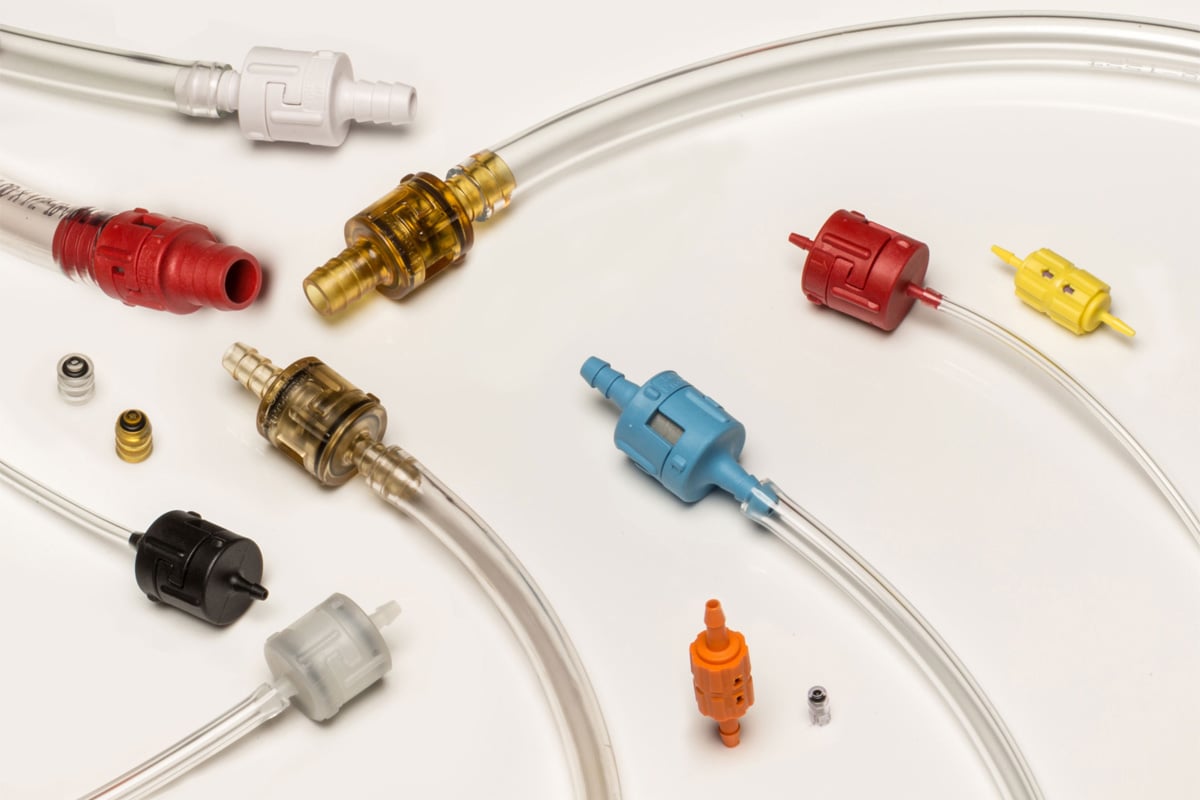

2. Barbed Check Valves

four_types_vlaves_barbed(1)

Barbed check valves connect directly to flexible tubing. They are commonly used in small liquid and pneumatic lines where a compact inline connection is desirable.

Potential applications include:

  • Laboratory equipment
  • Medical or diagnostic devices
  • Compact OEM products
  • Small pumps
  • Liquid dispensing systems

A barbed design can simplify installation and may eliminate the need for separate tubing adapters. However, the barb must match the tubing, and that involves more than comparing nominal sizes.

Important questions include:

  • What is the tubing’s actual inside diameter?
  • What material is the tubing made from?
  • Will it remain flexible over the application’s temperature range and service life?
  • Is a clamp or other retention method required?
  • Can the connection withstand the required pressure and pull-off force?

The tubing must also be compatible with the medium and operating environment. A suitable valve body and O-ring will not prevent failure if the connected tubing becomes brittle, softens, or loses its grip on the barb.

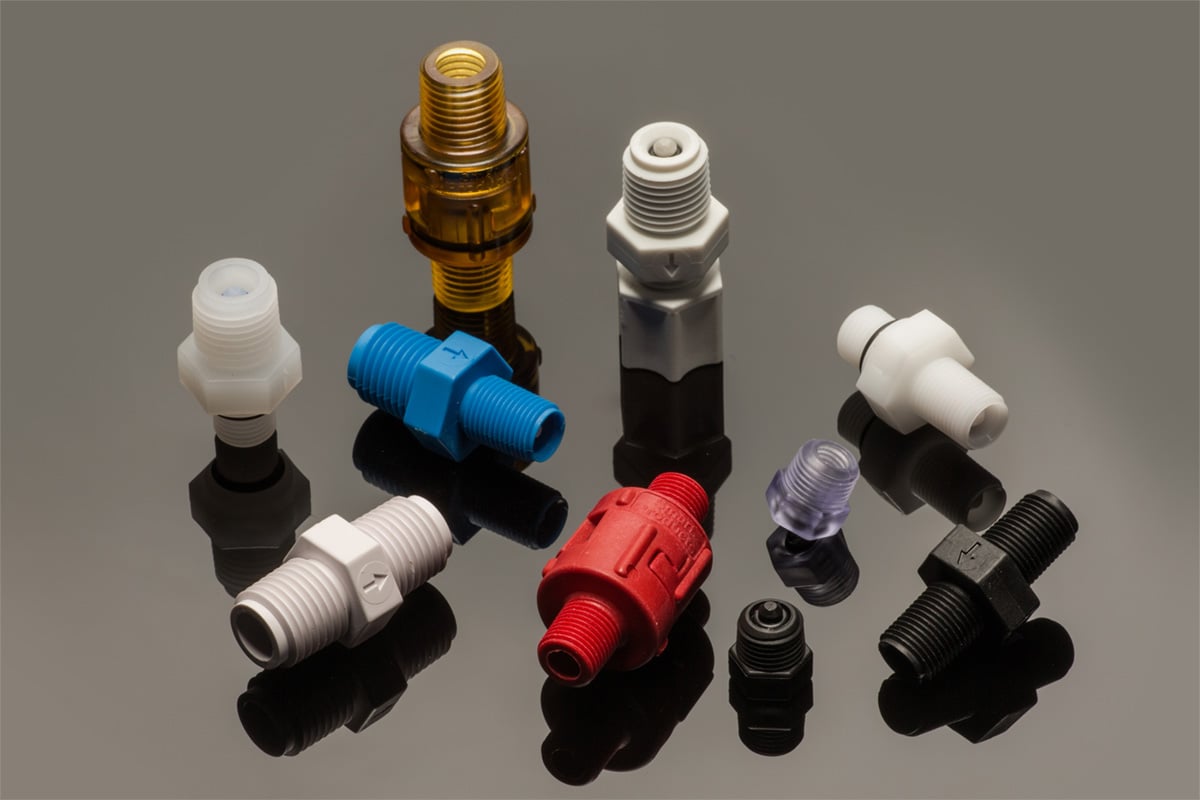

3. Threaded Check Valves

four_types_vlaves_NPT(1)

Threaded check valves use connections such as male or female NPT or metric threads. They are well suited to rigid plumbing, equipment ports, and assemblies that require a secure or serviceable mechanical connection.

They may be appropriate for:

  • Rigid fluid systems
  • Equipment ports
  • Assemblies exposed to vibration
  • Higher-stress connections
  • Applications in which direct installation can eliminate an adapter

Threaded connections are familiar, but plastics require thoughtful handling. Confirm whether the system uses NPT or metric threads, select a body material suitable for the expected mechanical load, and follow the recommended installation practices.

Excessive torque can crack, distort, or place long-term stress on a plastic valve body. Thread sealants and tapes must also be compatible with the plastic, system medium, and operating conditions.

A threaded valve should be selected as part of the complete connection strategy. Thread type, sealing method, torque, vibration, and service access can all influence its suitability.

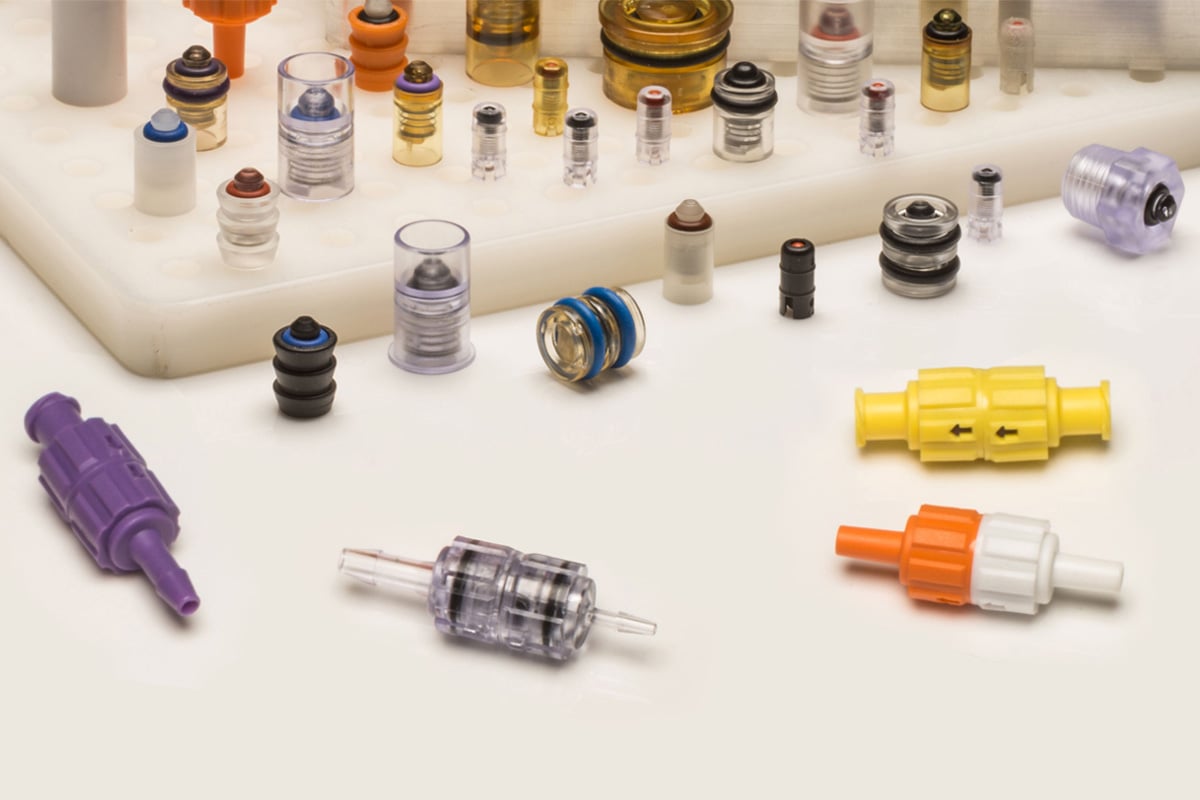

4. Modular and Miniature Check Valves

four_types_vlaves_mini(1)

Modular check valves allow different connection styles to be combined at the inlet and outlet.

For example, a system may need a barb on one side and a threaded connection on the other. A modular design can provide that transition without requiring a separate valve-and-adapter arrangement.

Miniature valves address another common challenge: extremely limited installation space. They may support micro tubing, small barbs, Luer-style connections, or other interfaces found in medical, diagnostic, and laboratory equipment.

Modular and miniature valves are useful for:

  • Systems requiring different inlet and outlet connections
  • Prototypes with evolving plumbing arrangements
  • Product families that use several connection formats
  • Compact medical and diagnostic equipment
  • Very small liquid or pneumatic lines

The primary tradeoff is size versus performance. A smaller valve can save space and reduce internal system volume. At the same time, a smaller flow path may limit flow capacity or create more pressure loss.

Dead space may also matter in applications that handle costly reagents, precise liquid volumes, or contamination-sensitive media. You should compare the benefits of a compact envelope with the application’s flow and internal-volume requirements.

What Else Should You Consider When Choosing a Check Valve?

The first three specifications and the connection style will narrow the field considerably. Several additional factors can still change which valve is appropriate.

Installation Orientation

A spring-loaded valve generally offers more orientation flexibility than a design that relies on gravity. Even so, test the valve in the same position it will occupy in the finished equipment.

Orientation can be particularly important when the opening pressure is very low, flow is intermittent, or a liquid column places additional pressure on the valve.

Available Installation Space

Evaluate the complete installation envelope, not just the valve body. The system may also need room for:

  • Tubing bend radius
  • Threaded connections
  • Clamps
  • Adapters
  • Tools used during assembly
  • Future service access

A small valve does not solve a space problem if its tubing or fittings cannot be installed without sharp bends, interference, or excessive assembly stress.

Operating Environment

You should account for the full range of conditions the product may encounter, including:

  • Minimum and maximum temperature
  • Vibration
  • Pressure cycling
  • Chemical exposure
  • Cleaning or sterilization processes
  • Storage conditions
  • Expected shelf life
  • Expected operating life

Testing only at nominal room conditions can overlook problems that emerge at temperature extremes, after repeated cycling, or following prolonged chemical exposure.

How to Narrow Down Your Check Valve Options

Not sure where to start? The following steps can help you identify what your application needs and have a more productive conversation with a manufacturer.

Step 1: Define What the Valve Must Do

Identify the valve’s function in the system. Does it need to prevent backflow, hold pressure, isolate part of the circuit, or provide pressure-relief behavior when appropriately configured?

Step 2: Document the Operating Conditions

Gather information about the medium, temperature range, inlet and outlet pressures, required flow, duty cycle, environment, and expected service life.

Step 3: Establish an Opening-Pressure Range

Use application requirements and system data to determine a practical starting range. If the exact value is unknown, plan to compare sample valves rather than choosing a spring pressure based on assumptions.

Step 4: Screen the Materials

Evaluate the plastic, O-ring, spring, and other wetted materials together. Include cleaning agents, sterilization chemicals, or other substances the valve may encounter outside normal operation.

Step 5: Select the Physical Configuration

Choose between cartridge or press-fit, barbed, threaded, modular, and miniature options. Confirm the available space, connection sizes, orientation, retention method, and assembly process.

Step 6: Compare Samples in the Actual Application

When the ideal configuration or opening pressure is uncertain, test multiple samples.

Look at and validate:

  • Opening behavior
  • Flow capacity
  • Pressure drop
  • Reverse-flow sealing
  • Material response
  • Installation fit
  • Performance at realistic operating extremes

Test, Don’t Guess

Specification sheets, calculations, and compatibility charts are essential for narrowing the available options. They are not substitutes for testing the selected valve in the real application.

Small differences in tubing, tolerances, temperature, media, installation position, and system pressure can affect performance. Testing allows you to confirm that the valve opens when expected, delivers sufficient flow, closes reliably, fits the assembly, and remains compatible with the operating environment.

A valve manufacturer can help identify appropriate options, narrow the range of opening pressures, review component choices, and provide samples.

Choose the Valve That Fits the Application

Cartridge, barbed, threaded, and modular valves each offer different advantages, but the physical configuration is only one part of the decision. The best fit starts with a clear understanding of what your application needs.

Begin with the essentials:

  1. Opening pressure
  2. Required flow rate
  3. Material compatibility
  4. Connection type and available space
  5. Testing under actual operating conditions

You don’t have to solve every detail at once. Start with the specifications you know, narrow the available options, and test promising valves in your system. This approach can help you avoid unnecessary costs, simplify installation, and feel more confident that the final valve will perform as expected.
